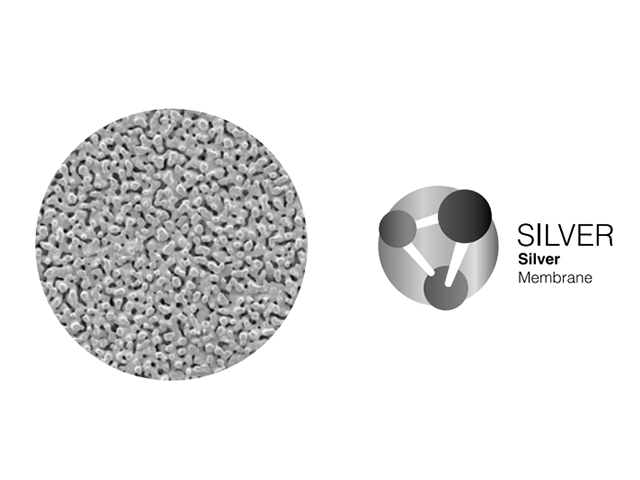

Air Monitoring - Silver Membrane
Silver membranes are composed entirely of 99.97% pure metallic silver. They provide excellent chemical resistance and high temperature characteristics. Orientation of the membrane can be important. There is a distinct difference in surface characteristics with one side appearing shinier than the other. Use the Shinier side upstream for scanning electron microscopy. For all other applications and analytical work use the duller side upstream.
Applications
Airborne asbestos fibers by X-Ray diffraction
Dissolved Organic Carbons (DOC)
Analysis of airborne silica in foundries, glass plants, quarries, mines, ceramic manufacturing
Coke oven emissions analysis
Carbon and carbon black
Coal tar pitch volatiles
Fly Ash - high temperature
Bromine and Chlorine analysis
Features and Benefits
99.97% pure silver
High temperature resistance
High chemical resistance
Hydrophilic
Economical - can be cleaned and reused
Autoclavable
Product Characteristics
| Retention Range | 0.22 to 5 μm available |
|---|---|
| Maximum Temperature | 204 °C |
| Thickness | 50 μm |
