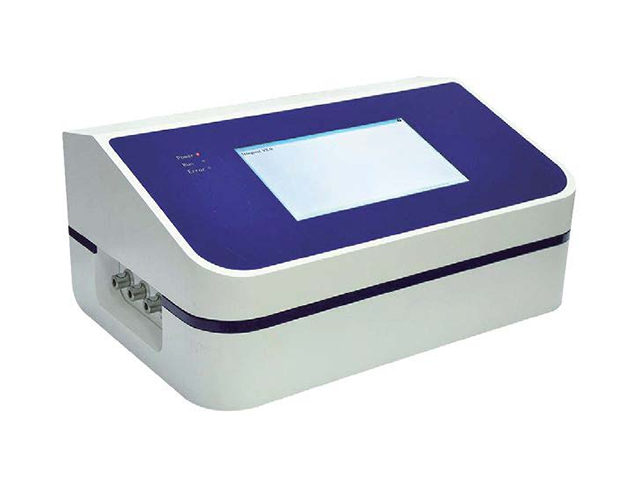

Filter Integrity Tester
GVS filter integrity tester is an intelligent precision analyzer with large capacity data recording, exporting and printing functions. Its 10-inch high-definition true-color touch screen makes it more convenient and simpler to use. The upgraded system can meet the latest requirements for data integrity.
Applications
-
Features
Powerful, covers all existing test methods regarding the integrity of the filter
Adopt optimized Linux system
10-inch true-color touch screen design, frien human-machine interface, simple, fast and reliable operation

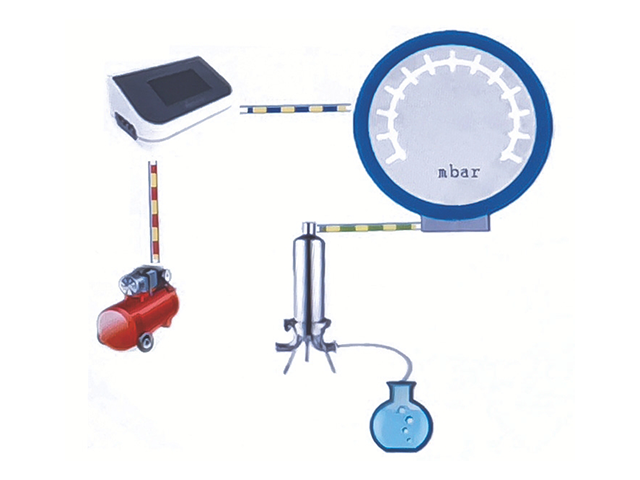

To meet offline and online testing, using pressure sensors with higher accuracy and lower deviation bands to improve the test accuracy
Automatic self-test function, can report faults in time
Scientific user management, password login, user classification etc., in compliance with GMP and FDA CFR 21 part 11, support multi-level user access permission settings, ensure data integrity, have comprehensive audit trail functions and support manual or electronic signature
Can establish 1000 sets of pre-stored programs, fully meet multiple filter types and different test conditions in the field, which is more intelligent and simpler
Increased the display curve of diffusion flow-pressure, realized the display and printing function of three curves, optimized the air intake control unit, and greatly increased the air intake speed and stability
Support USB disk data export function, which can not only export the original test data, but also the source data and configuration data, so that the data integrity requirements are perfectly reflected in the instrument, if single data can export PDF style directly
Can expand data communication and network interface requirements according to customer requirements, support wireless communication functions
Optimize the structure so that its dustproof and splashproof level reaches IP54, and use quick connectors to avoid incorrect connection of the inlet and outlet pipes
High-precision sensors and optimized algorithms can extend the gas path to 100m, make the upstream volume test more accurate, and the instrument can better meet the conditions of field use without affecting the test result
The built-in thermal printer avoids the risk of particle and ink contamination, and can keep the handwriting clear for more than 10 years under appropriate conditions
Multiple pressure units can be switched flexibly(mbar, kpa, psi, kgf/cm2)
1000 user accounts, four level of user management, and each user's authority can be determined by default or customized methods, more flexible to meet the needs of on-site production and laboratory management, and perfect user information and authority configuration
Can test most up to 12-core 20-inch filter cartridges, which greatly improves the user's work efficiency
Rich data interface, the instrument not only includes standard digital and analog interfaces (RS232/USB), but also can customize a variety of industrial buses and analog control ports according to customer needs to prepare for intelligent upgrade of the system, such as online full automation supporting bacteria control system
Parameters
| Power Supply | 100–240 VAC, 50HZ, 120W |
|---|---|
| Operation Pressure | 100-10000 mbar 150 |
| Operation Condition | Ambient Temperature: +5℃ - +40℃, Relative Humidity: 10 - 80% |
| Dimension(mm) | 480 × 300 × 210mm (Depth x width x height) |
| Function | Bubble point Test, Extensive Bubble Point Test, Pressure Holding Test, Diffusion FLow Test, Water Intrusion Test, Ultrafitration Membrane Test |
| Test Accuracy | Upstream Volume Test: ± 4%, Bubble Point Test: ± 50mbar, Diffusion Flow Test: ± 4%, Water Immersion: ± 0.01ml/min |
| Test Scope | BP: 100-8000mbar DF: 1-1000ml/min WI: 0.01-100ml/min |
| Applied Range | Symmetric and asymmetric membrane test, needle filters, capsule filters, flat filters, cartridge filters, ultrafiltration membrane packages, ultrafiltration columns, various irregular filters |
| Audit Trial | Audit trail records can exportable and irreversible |
| Reservation Solution(programs) | 1000sets |
| Dust and splash level | IP54, Front is IP65 |
| Applicable Environment | Above D level |
| Weight | 11KG |
